Description

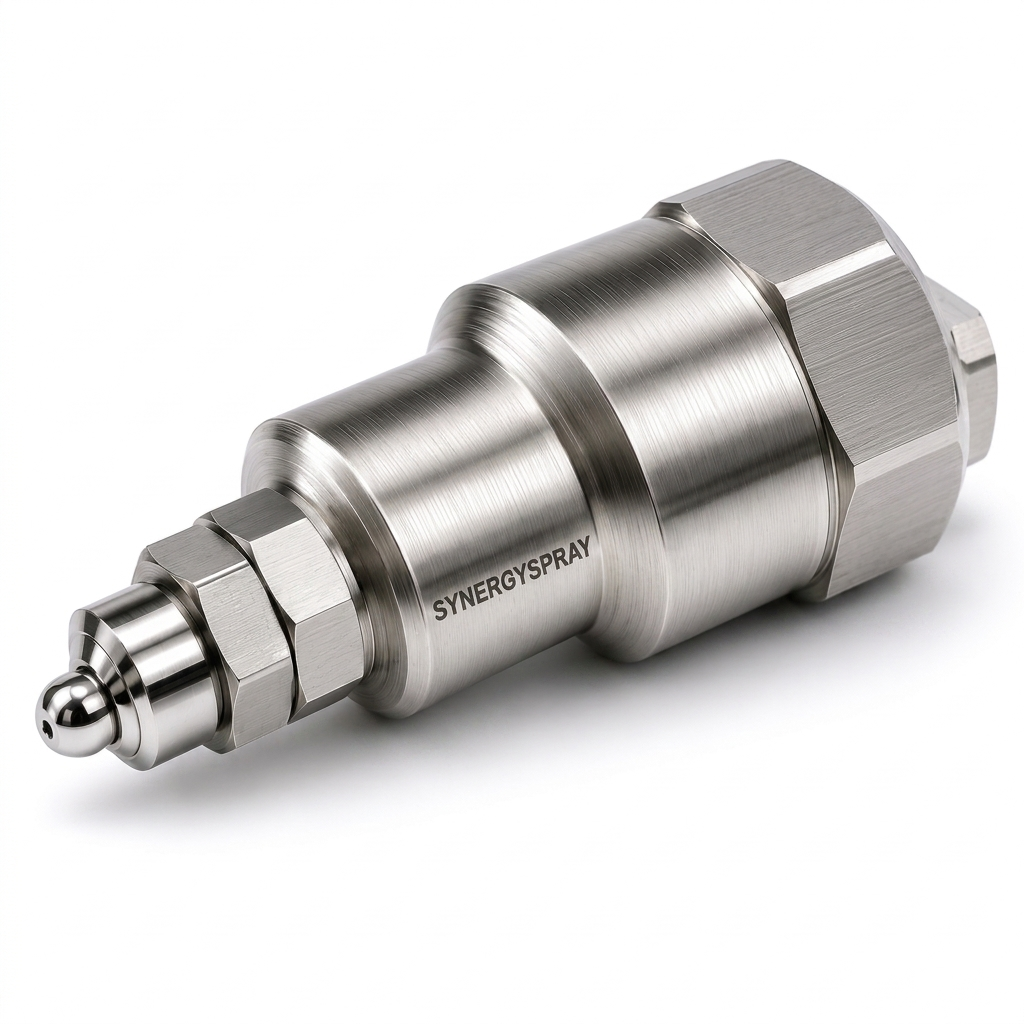

The dual fluid solenoid valve nozzle is engineered for applications where accurate spray timing, fine atomization, and controlled liquid delivery are required. Unlike standard pressure nozzles, it uses both compressed air and liquid to produce a uniform spray pattern with smaller droplets and improved coverage.
This nozzle is equipped with a DC24V electromagnetic control system that allows quick spray start and stop. When the solenoid coil is energized, the internal valve opens and allows liquid to enter the atomizing section. Compressed air then breaks the liquid into fine droplets. When the power is turned off, the valve closes immediately to stop the spray and reduce dripping.
This air atomizing spray nozzle is widely used in automated production lines where precision and repeatability are important. It can be connected with PLC systems, sensors, timers, robotic arms, and conveyor-based spray control equipment.
Manufactured with 430F stainless steel, 304 stainless steel spring components, EPDM or fluorinated rubber seals, and engineering plastics such as PPS, PEEK, and Teflon, the nozzle offers durability, chemical resistance, and long service life in industrial environments.
Applications
The automatic spray nozzle is suitable for a wide range of industrial spraying applications that require fine mist generation and accurate liquid control.
- Fire Production
- Cooling and Temperature Control
- Lubrication Systems
- Humidification and Moisture Control
- Chemical Spraying
- Food Processing
- Robotic Spray Automation
Features
Fine Mist Atomization
The nozzle uses dual-fluid technology to create fine droplets, helping improve spray coverage, coating quality, and liquid distribution.
Fast Solenoid Response
The built-in DC24V coil provides rapid spray activation and shutdown for accurate intermittent spraying.
Anti-Drip Performance
The internal sealing structure helps reduce dripping after shutoff, keeping the target area cleaner and reducing fluid waste.
Durable Stainless Steel Body
The stainless steel spray nozzle construction provides strength, corrosion resistance, and dependable performance in harsh industrial environments.
Stable Spray Pattern
The nozzle delivers consistent atomization for repeatable spray results in automated production processes.
Easy System Integration
It can be connected with PLC controls, relays, sensors, timers, robotic systems, and conveyor spray equipment.
Compact Industrial Design
The compact threaded structure makes installation simple in limited-space machines, spray stations, and automated equipment.
Suitable for High-Frequency Spraying
The nozzle supports frequent spray cycles, making it suitable for fast-moving production lines and repeated spray operations.
FAQ
1. What is a dual fluid solenoid valve nozzle?
A electromagnetic atomizing dual fluid solenoid valve nozzle is an automatic spraying device that uses compressed air and liquid together to create fine atomization, while a DC24V solenoid valve controls spray start and stop.
2. How does a dual fluid air atomizing nozzle work?
A dual fluid air atomizing nozzle works by mixing compressed air with liquid inside the nozzle, breaking the liquid into small droplets to create a fine and even spray.
3. Where is an automatic atomizing nozzle used?
An automatic atomizing nozzle is used in coating, cooling, lubrication, humidification, chemical spraying, food processing, textile production, paper manufacturing, and robotic automation.
4. Can this DC24V solenoid spray nozzle connect with a PLC?
Yes, a DC24V solenoid spray nozzle can be connected with PLC systems, timers, sensors, relays, and automatic spray controllers for precise operation.
5. Is this nozzle suitable for robotic spraying systems?
Yes, this robotic spraying nozzle is suitable for robotic arms, conveyor-triggered spray stations, automated production lines, and timed spray applications.
6. What is the benefit of an anti-drip spray nozzle?
An anti-drip spray nozzle helps prevent unwanted liquid discharge after shutoff, reducing waste, surface marks, and cleaning requirements.
7. Is the nozzle suitable for chemical applications?
Yes, this chemical spray nozzle can be used with many industrial chemicals, solvents, cleaning agents, and treatment liquids, but compatibility should be checked based on liquid type, concentration, temperature, and seal material.
8. What pressure is required for a compressed air spray nozzle?
A compressed air spray nozzle like the DCF-M model supports air pressure up to 100 PSI and liquid pressure up to 60 PSI, depending on the required spray effect.
9. How do I select the right nozzle for automated spray control?
For automated spray control, confirm the liquid type, viscosity, required flow rate, spray distance, air pressure, liquid pressure, spray pattern, working temperature, and control method before ordering.
