Spray Nozzles for Coating
Spray nozzles for coating are designed to deliver controlled liquid application, uniform spray coverage, and better finish quality for reliable performance in industrial coating processes.
What Are Coating Spray Nozzles?
A coating spray nozzle is a precision-engineered nozzle designed to apply coating liquids evenly over a target surface. These nozzles are used in manual, semi-automatic, and fully automatic systems where coating quality and liquid control are important.
Unlike general-purpose nozzles, coating nozzles are selected based on operating pressure, spray angle, flow rate, liquid properties, and finish expectations. The correct nozzle helps improve coating uniformity while reducing overspray and uneven application.

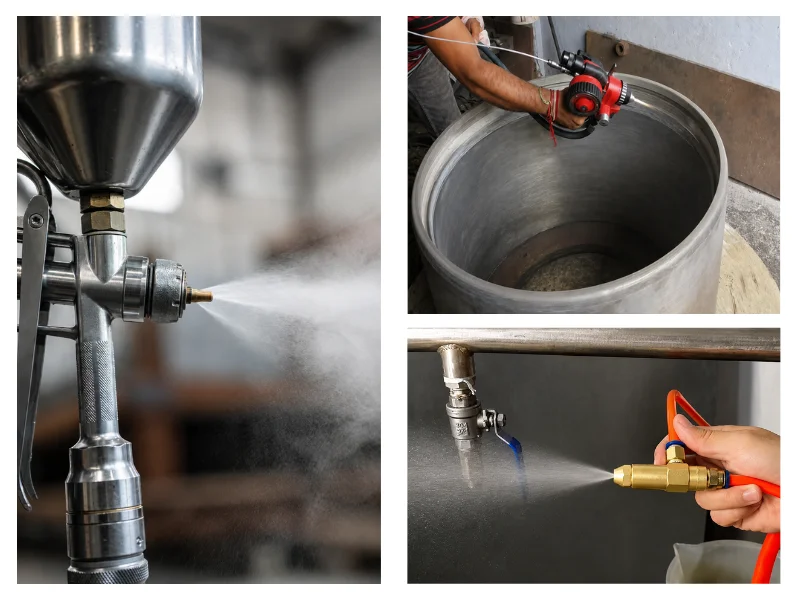

Why Nozzle Selection Matters in Coating Applications
Choosing the correct nozzle is important because coating performance depends on how the liquid is atomized and distributed. Factors such as droplet size and spray coverage affect the final result on the surface.
The right nozzle helps:
Improve coating consistency
Support better finish quality
Reduce overspray and liquid loss
Maintain more accurate film thickness
Improve coating control in continuous operations
Match spray performance to the application area
Types of Nozzles Used in Coating Systems
Different coating processes require different nozzle designs depending on the liquid, surface, and production method.
Flat Fan Nozzle
A flat fan nozzle for coating produces a flat spray pattern suitable for sheets, panels, conveyors, and other wide surfaces where even band coverage is required. These nozzles are commonly designed with an orifice size ranging from 0.30 mm to 2.00 mm, spray angles from 15° to 110°, and droplet sizes from 80 to 250 microns depending on pressure and liquid properties. They generally operate at 1.5 to 10 bar with flow rates starting from 0.20 LPM and going up to 15 LPM.
Full Cone Nozzle
A full cone nozzle creates a dense circular spray pattern for uniform area coverage. It is useful where broader liquid distribution is needed across a defined target zone. These nozzles are typically available with an orifice size of 0.50 mm to 2.50 mm, spray angles between 15° and 120°, and droplet sizes ranging from 100 to 400 microns. They usually operate at 1 to 10 bar and provide flow rates from 0.50 LPM to 20 LPM depending on nozzle size and pressure.
Hollow Cone Nozzle
A hollow cone nozzle produces a circular ring-shaped spray pattern with fine droplets. It is suitable for localized coating and controlled circular spray coverage. These nozzles commonly feature an orifice size of 0.30 mm to 2.00 mm, spray angles from 40° to 120°, and droplet sizes of around 50 to 250 microns. They generally operate at 2 to 10 bar with flow rates between 0.20 LPM and 12 LPM.
Air Atomizing Nozzle
An air atomizing nozzle for coating uses compressed air and liquid together to create finer droplets and smoother atomization. It is suitable for applications where finish quality and spray control are especially important. These nozzles generally have an orifice size of 0.20 mm to 1.20 mm and can produce droplet sizes in the range of 10 to 80 microns depending on air pressure, liquid pressure, and nozzle design. They typically operate with air pressure from 1.5 to 6 bar and liquid pressure from 0.5 to 3 bar, with liquid flow rates ranging from 0.05 LPM to 2.00 LPM.
Fine Mist Nozzle
A fine mist nozzle creates smaller droplets for light coating and delicate liquid application. It is suitable where low-volume spraying is required with controlled moisture addition. These nozzles are usually designed with a small orifice size of around 0.15 mm to 0.30 mm, producing droplet sizes from 20 to 60 microns. They commonly operate at 10 to 70 bar depending on the misting system design, with very low flow rates typically between 0.03 LPM and 0.15 LPM.
High Pressure Nozzle
A high pressure spray nozzle for coating is used where stronger spray output and faster liquid delivery are needed for demanding industrial work. These nozzles are commonly built with an orifice size ranging from 0.20 mm to 1.50 mm and can produce droplet sizes from 30 to 150 microns depending on pressure and liquid viscosity. They generally work at operating pressures from 20 bar to 150 bar or more, with flow rates varying from 0.10 LPM to 8.00 LPM based on application requirement and nozzle configuration.
Applications of Coating Nozzles
These nozzles are used in many industries where liquid coating, treatment, or finishing is part of the process.
Common applications include:
Anti-corrosion treatment
Machinery surface protection
Oil coating
Packaging LINE spraying
Wood finishing
Paint coating lines
Automotive component coating
Metal finishing
Glass and ceramic treatment
Adhesive spraying
Benefits of Using the Right Nozzle in Coating
A properly selected nozzle offers several practical benefits in industrial coating operations.
It helps:
Improve spray coverage across the target surface
Support smoother and more even coating results
Reduce excess liquid usage
Improve process reliability
Maintain stable spray performance
Reduce rework caused by poor coating distribution
Support efficient liquid application in production systems
How to Select the Right Nozzle for Coating
Choosing the correct nozzle depends on the coating material and the application requirement. The nozzle should match the liquid properties, required finish, and operating conditions. Important factors include:
Liquid viscosity
Affects atomization and nozzle suitability.
Surface shape
Determines coverage and nozzle arrangement.
Spray pattern
Must match the surface and coating method.
Coating thickness
Impacts nozzle capacity and spray overlap.
Finish quality
Influences droplet size and spray uniformity.
Material compatibility
Nozzle material must suit the coating liquid.
Flow rate
Should match the required coating output.
Clog resistance
Important for pigmented or thicker coatings.
Pressure
Affects spray angle and atomization quality.
Wear resistance
Needed for long-term and abrasive use.
Why Choose Us for Coating Nozzle Solutions?
We supply nozzle solutions designed for practical industrial use and help customers choose the correct product based on spray requirement, finish quality, and process conditions. Our range includes options for different spray patterns, flow capacities, and coating applications.
Improve spray coverage across the target surface
Support smoother and more even coating results
Reduce excess liquid usage
Improve process reliability
Maintain stable spray performance
Reduce rework caused by poor coating distribution
Support efficient liquid application in production systems
FAQs - Spray Nozzles for Coating
How does liquid viscosity affect coating nozzle selection?
Higher viscosity coatings require a nozzle setup that can maintain stable flow and proper atomization under the available pressure.
Why is atomization important in coating applications?
Atomization affects droplet size, coating uniformity, finish quality, and overspray control.
How does spray pressure influence coating performance?
Spray pressure affects atomization, spray angle, droplet formation, and coating consistency.
Which spray pattern is suitable for wide coating coverage?
Flat fan spray patterns are commonly selected when uniform coating is needed across wider surface areas.
Can one coating nozzle handle different coating materials?
Not always, because coating materials vary in viscosity, solids content, and atomization requirements.
How do I know if a coating nozzle is worn out?
A worn nozzle may show distorted spray pattern, higher flow than expected, and inconsistent coating results.
Which nozzle material is suitable for corrosive coatings?
The nozzle material should be selected based on chemical compatibility, corrosion resistance, and operating conditions.
