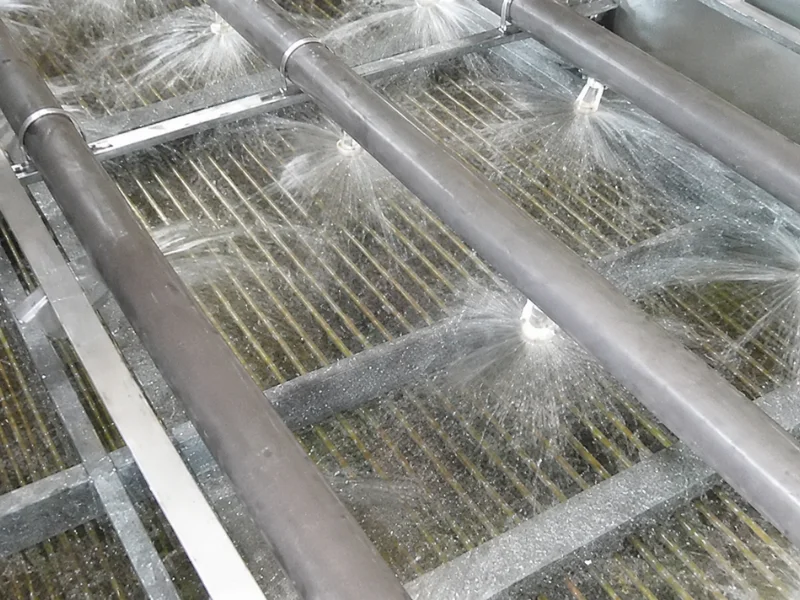

Industrial Spray Nozzles Manufaturer and Supplier

We are a leading Industrial Spray Nozzle Manufacturer and Supplier offering high-quality spray nozzles for cleaning, cooling, coating, dust suppression, humidification, and chemical spraying applications. Our precision-engineered nozzles ensure accurate liquid distribution, controlled flow rates, and uniform spray coverage for improved process efficiency.

Available in various spray patterns such as flat fan, full cone, hollow cone, solid jet, misting, and atomizing sprays, our industrial spray nozzles are designed for reliable performance, reduced liquid wastage, and long service life. Manufactured from durable, corrosion-resistant materials, they are widely used in chemical, food processing, pharmaceutical, power generation, water treatment, and manufacturing industries.

Choose our industrial spray nozzles for efficient operation, consistent performance, and cost-effective industrial spraying solutions.

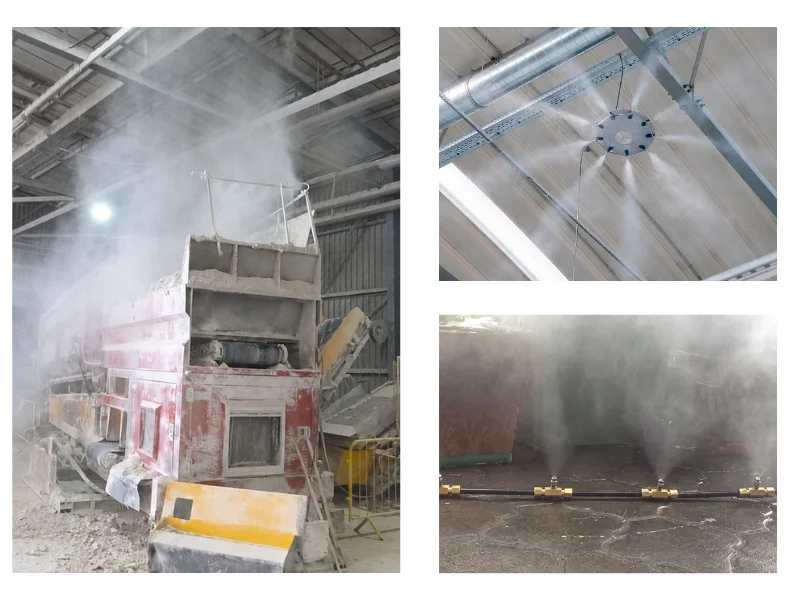

Why Nozzle Selection Matters in Industrial Operations

Selecting the right industrial spray nozzle is crucial for achieving efficient liquid distribution and optimal process performance. The correct nozzle ensures consistent spray coverage, reduces resource consumption, and improves overall operational efficiency.

Ensures uniform spray coverage across the target area.

Improves cleaning, cooling, coating, and dust suppression efficiency.

Optimizes flow rate and spray pressure for better performance.

Minimizes liquid wastage and operating costs.

Improve dust suppression performance in continuous operation

Prevents uneven spraying and product quality issues.

Reduces nozzle clogging and maintenance requirements.

Increases equipment reliability and service life.

Enhances process control and production consistency.

Supports safe and efficient industrial operations.

Types of Spray Nozzles For Industrial

A Flat Fan Spray Nozzle is designed to produce a flat, fan-shaped spray pattern with uniform liquid distribution across a straight-line coverage area. This nozzle is commonly available in spray angles such as 15°, 25°, 40°, 65°, 80°, and 110°, depending on the required coverage width and spray distance. It is generally used with low to medium pressure systems, and the flow rate varies based on orifice size and operating pressure. Flat fan nozzles are available in SS304, SS316, brass, PP, PVDF, and ceramic materials.

A Full Cone Spray Nozzle produces a filled circular spray pattern with even spray distribution across the complete spray area. It is suitable for applications where wider and uniform liquid coverage is required. Full cone nozzles are commonly available in spray angles such as 30°, 45°, 60°, 90°, and 120°. These nozzles are designed with internal vane or swirl technology to distribute liquid evenly. They are available in connection sizes such as 1/8”, 1/4”, 3/8”, 1/2”, 3/4”, 1”, and larger sizes.

A Hollow Cone Spray Nozzle creates a ring-shaped spray pattern with fine to medium droplets and an open center. This nozzle is suitable for applications requiring excellent liquid-air contact and fast evaporation. Hollow cone nozzles are commonly available in spray angles from 60° to 120°, with flow rates depending on pressure and orifice size. They are often used in low, medium, and high-pressure spray systems.

A Spiral Spray Nozzle is designed with an open spiral structure that breaks the liquid into multiple spray streams to create a full cone or hollow cone spray pattern. This open-flow design helps reduce clogging, especially when using water with small particles or process liquids. Spiral nozzles are commonly available in full cone and hollow cone patterns, with spray angles such as 60°, 90°, 120°, and 180°. They are available in connection sizes from 1/4” to 2” and above, depending on flow requirement. Common materials include SS304, SS316, brass, PP, PVDF, and silicon carbide.

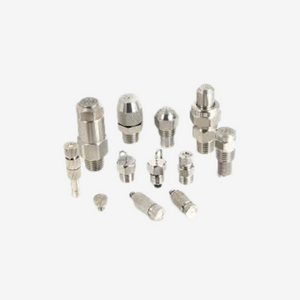

A Mist Spray Nozzle is used to produce fine droplets for fogging and misting applications. It is designed with a small precision orifice to create fine atomization under pressure. Mist nozzles are generally available in low-flow and high-pressure designs, with orifice sizes selected based on droplet size and mist coverage requirement. Common connection sizes include 10/24 UNC, 1/8”, 1/4”, and 1/2” BSP or NPT, depending on the system design.

An Air Atomizing Spray Nozzle uses compressed air and liquid together to produce a very fine atomized spray. This nozzle is suitable for applications where extremely fine droplet formation and controlled spray output are required. Air atomizing nozzles are available in internal mix and external mix designs, depending on whether air and liquid mix inside or outside the nozzle. They can produce spray patterns such as round spray, flat spray, and wide-angle spray.

A Tank Cleaning Spray Nozzle is designed for cleaning the internal surface of tanks, vessels, reactors, containers, and process equipment. These nozzles are available in static spray ball, rotating spray ball, and high-impact rotary jet designs. Static spray balls provide fixed spray coverage, while rotating nozzles use liquid pressure to rotate and clean the tank surface more effectively. Tank cleaning nozzles are commonly available in 180°, 270°, and 360° spray coverage options, depending on the tank design and cleaning requirement.

A Wide Angle Spray Nozzle is designed to provide large-area spray coverage at a shorter distance. It is commonly available in spray angles such as 120°, 150°, and 170°, depending on the application. These nozzles are useful where the spray must cover a wide surface without requiring high mounting height. Wide angle nozzles are available in flat fan, full cone, hollow cone, and spiral designs.

A Solid Stream Nozzle produces a concentrated straight jet spray with high impact force. This nozzle is used where focused spray power is required rather than wide coverage. It is generally available with round orifice designs and can be used in medium to high-pressure systems depending on the cleaning or impact requirement.

Spray Nozzles for Industrial Applications

Dust Suppression

Used in cement plants, mining sites, crushers, coal handling plants, conveyors, stockyards, and material handling areas to control airborne dust.

Cooling Systems

Helps distribute water evenly for heat reduction in cooling towers, gas cooling systems, machinery cooling, and product cooling applications.

Chemical Spraying

Suitable for process treatment, chemical dosing, sanitizing, coating, surface preparation, and corrosion-resistant spraying applications.

Fire Protection

Used for cooling, fire suppression, and controlled water discharge over equipment, storage areas, process units, and high-risk zones.

Tank Cleaning

Used to clean storage tanks, reactors, vessels, containers, and mixing tanks in food, beverage, pharma, dairy, and chemical industries.

Humidification and Fogging

Helps maintain controlled humidity in textile mills, paper mills, greenhouses, storage rooms, printing units, and production areas.

Gas Scrubbing

Used in scrubbers, gas washing systems, pollution control units, exhaust treatment systems, and flue gas cooling applications.

Cooling Tower Applications

Supports uniform water distribution over fill media to improve heat transfer efficiency and cooling tower performance.

Industrial Washing

Used for equipment cleaning, conveyor belt washing, product rinsing, bottle washing, crate washing, and surface degreasing.

Benefits of Industrial Spray Nozzles

Industrial nozzles support efficient heat reduction by distributing water evenly in cooling towers, gas cooling systems, product cooling lines, and process equipment.

Different nozzle types are available for fine mist, heavy spray, wide coverage, high-impact washing, atomization, chemical spraying, and tank cleaning.

Industrial nozzles are designed for easy installation, cleaning, inspection, and replacement, helping reduce downtime during continuous operation.

Proper nozzle selection helps control dust at crushers, conveyors, coal yards, cement plants, mines, stockyards, and loading points.

A Stainless Steel Spray Nozzle offers strength, corrosion resistance, and long service life in demanding industrial environments.

Correct nozzle selection ensures that the right amount of liquid reaches the target area at the right pressure and spray angle.

Spray nozzles help control flow rate, droplet size, and spray direction, reducing unnecessary water and chemical usage.

How to Select the Right Industrial Spray Nozzle

Selecting the right nozzle is important for accurate spray performance, efficient liquid usage, and long-term reliability.

Identify the Application

Decide whether the nozzle is required for cleaning, cooling, dust suppression, coating, chemical spraying, humidification, gas scrubbing, tank cleaning, lubrication, or fire protection.

Get Technical Support

Consult an industrial nozzle supplier for critical applications based on flow rate, pressure, spray distance, material, liquid type, and working condition.
