Spray Nozzles for Fire Protection
Fire protection spray nozzles are widely used in industrial and commercial safety systems to control, suppress, and prevent the spread of fire. These nozzles are engineered to deliver water or foam in specific spray patterns for efficient cooling, flame suppression, and equipment protection.
In critical environments where fire hazards are high, properly designed spray nozzle systems help improve safety, minimize damage, and ensure reliable emergency response performance.
Why Spray Nozzle Selection Matters in Fire Protection
Choosing the right nozzle is not just about water flow—it is about delivering the right spray performance for the right fire risk. From equipment cooling to exposure protection and water curtain applications, proper nozzle selection helps ensure more effective and hazard-specific fire protection.
A properly selected fire protection spray nozzle can help provide:
Effective water coverage over the risk area
Better cooling of exposed equipment and surfaces
Reliable performance in engineered fire systems
Suitability for tank, transformer, and process area protection
Support for compliance-oriented fire protection design
Types of Spray Nozzles for Cleaning and Washing
Different applications require different spray characteristics. The right nozzle type is usually selected based on droplet size, spray pattern, flow rate, and system requirement.
Flat Fan Nozzles
Flat fan spray nozzles produce a flat, high-impact spray pattern that is suitable for conveyor cleaning, machine washing, and surface rinsing. They are commonly available in spray angles from 15° to 110°, operating pressures of around 1 to 10 bar, and materials such as stainless steel, brass, and polypropylene.
Full Cone Spray Nozzles
Full cone spray nozzles deliver a filled circular spray pattern for broader and more even liquid coverage in washing and rinsing applications. These nozzles are usually available in spray angles from 15° to 120°, pressure ranges of 0.5 to 7 bar, and material options including stainless steel, brass, PP, and PVDF.
Hollow Cone Nozzles
Hollow cone spray nozzles create a ring-shaped spray with finer droplets, making them suitable for controlled rinsing, chamber cleaning, and light washing duties. They are generally available in spray angles from 20° to 120°, operating pressures of 1 to 14 bar, and materials such as stainless steel, brass, and chemical-resistant plastics.
High Pressure Spray Nozzles

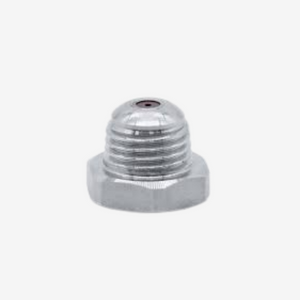

High pressure spray nozzles are designed for heavy-duty cleaning where stronger spray force is needed to remove grease, dirt, and stubborn residue. These nozzles are available in spray patterns such as flat fan, round jet, and solid stream, with operating pressures from 20 to 350 bar and durable materials like stainless steel, hardened steel, and tungsten carbide.

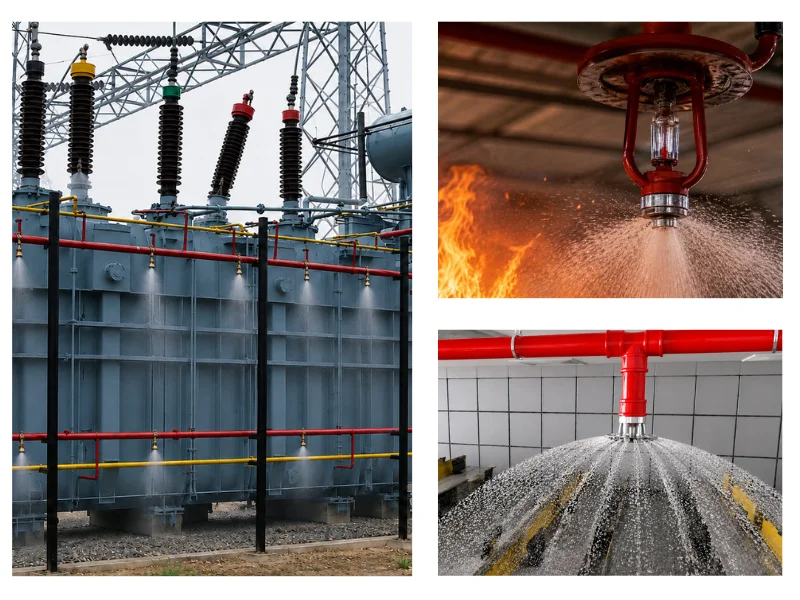

Applications of Fire Protection Spray Nozzles
Spray nozzles for fire protection are used across a wide range of industrial and commercial sectors where engineered water spray systems are required. Open technical sources commonly reference applications such as:
Transformer fire protection
Conveyor and structural cooling
Tank cooling and exposure protection
Cable trays and industrial plant zones
Flammable and combustible liquid hazard areas
Deluge and special hazard protection systems
Process equipment protection

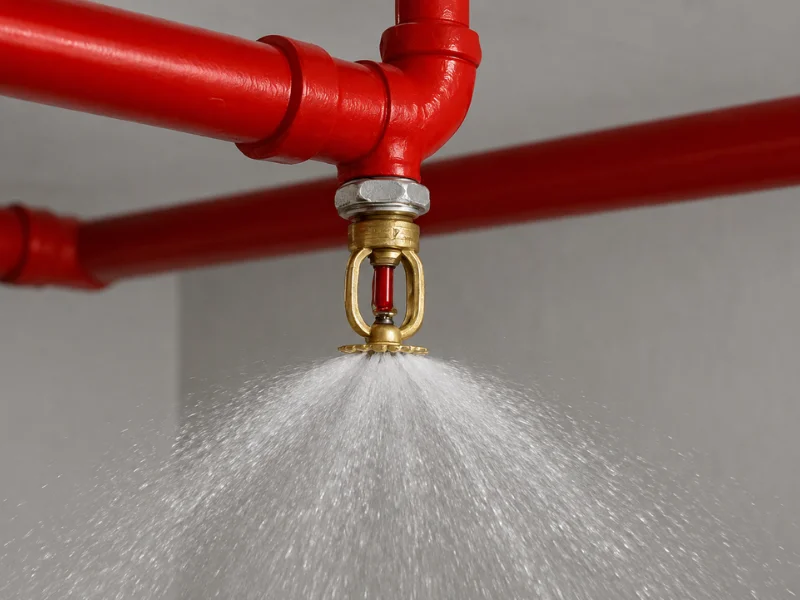

Benefits of Choosing Our Fire Fighting Spray Nozzles Solutions
Provides controlled water distribution for effective hazard coverage
Supports reduction of radiant heat exposure in nearby areas
Suitable for use in deluge and fixed water spray systems
Available in different spray angles for varied protection requirements
Helps achieve better water coverage based on system design
Supports application-specific protection for industrial fire risks
Can be selected for directional, medium velocity, high velocity, or water curtain use
Contributes to reliable performance in engineered fire protection systems
Helps protect critical assets in special hazard areas
Factors to Consider When Choosing Spray Nozzles for Fire Protection
Choosing the right fire protection spray nozzle requires more than selecting a size. The system must match the hazard and performance target. Key selection factors include:
Fire Risk and Application Area
Select the nozzle based on the protected area, such as transformer, tank, conveyor, hydrant, machinery, or chemical fire protection.
Material and Chemical Compatibility
Use brass, bronze, SS304, SS316, or special alloy nozzles based on corrosion risk, water quality, chemical agent, and site conditions.
Flow Rate and Pressure
Choose a nozzle that matches the required water, foam, or chemical discharge and available system pressure for effective fire control.
Installation and Coverage
Ensure correct nozzle spacing, mounting position, and direction for complete protection of equipment, structures, chemical storage, or process areas.
Spray Pattern and Angle
Select the right spray type and angle to achieve proper coverage, cooling, and chemical agent distribution without dry spots.
Why Choose Us for fire fighting spray nozzles Solutions
We supply spray nozzles for fire protection with a practical understanding of industrial applications, hazard-based requirements, and system compatibility. Our approach is focused on helping customers select the correct nozzle type for actual project needs rather than offering a one-size-fits-all product.
Quality-focused products for dependable performance in fire protection systems
Robust material options selected for durability, corrosion resistance, and long service life
Customization support based on application, spray angle, flow requirement, and project specifications
Bulk order capability for contractors, distributors, industrial projects, and large-scale requirements
On-time delivery commitment to help keep your project schedule on track
Supply across India with support for customers in multiple regions and industries
FAQs- Fire Fighting spray Nozzles
Are fire protection spray nozzles the same as sprinklers?
No. Fire protection spray nozzles are generally open-type devices used in engineered water spray systems, while sprinklers are usually automatic heat-responsive devices designed for occupancy or area protection. fire fighting spray nozzles
Where are water spray nozzles used in fire protection systems?
They are used in transformer protection, tank cooling, flammable liquid risk areas, industrial process equipment, structural exposure protection, cable tray protection, and special hazard deluge systems.
What is the difference between open type spray nozzles and automatic nozzles?
Open type spray nozzles do not operate individually by heat. They discharge water when the associated deluge or water spray system is activated. Automatic devices respond individually based on their operating element and temperature condition.
How do I choose the right spray nozzle for fire protection?
The right nozzle is selected based on hazard type, spray pattern, spray angle, K-factor, operating pressure, installation position, area coverage, and system design requirements.
Can spray nozzles be used for transformer fire protection?
Yes. Public technical references commonly include transformer protection among the applications for water spray nozzles in engineered fire protection systems.
Why is nozzle pressure important in fire protection systems?
Pressure affects discharge rate, droplet formation, and spray coverage. A nozzle must operate within its intended pressure range to provide the designed water distribution pattern.
Do fire protection spray nozzles need regular maintenance?
Yes. Inspection and maintenance are important because blockage, corrosion, coating, or physical damage can affect nozzle performance. NFPA 25 addresses inspection, testing, and maintenance of water-based fire protection systems.
Can I use any spray nozzle for a fire protection system?
No. Fire protection nozzles should be selected according to the hazard, system design, and applicable standards or project requirements. A generic industrial spray nozzle is not automatically suitable for fire protection duty.
Do you help with selecting spray nozzles for fire protection applications?
Yes. We help customers identify suitable nozzle options based on application, spray requirement, hazard area, and project needs so the selected product is better aligned with the intended fire protection purpose.
