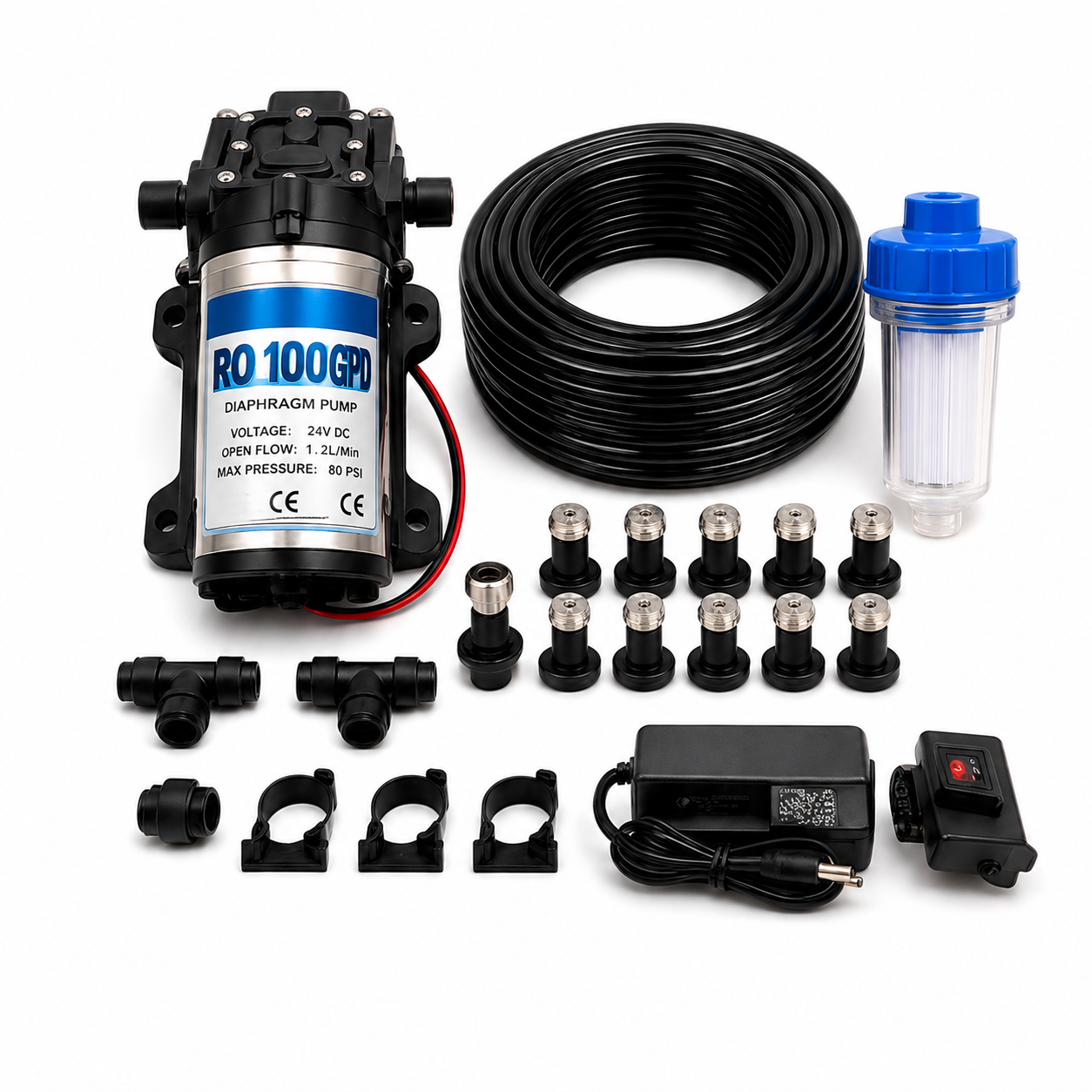

Fogger Kit

The Low Pressure Fogger Kit is a ready-to-install misting solution designed for small cooling, humidification, gardening, balcony, nursery, greenhouse, terrace, and light commercial applications. This kit uses an RO 100 GPD pump and 10 numbers of 6 mm push fit fog nozzles to create a fine mist effect with simple pipe connection and easy installation.

Original price was: ₹5,499.00.Current price is: ₹4,499.00.

Availability: 40 in stock

Easy To installs

Easy to Install

10 Fog Nozzle

10 Fog Nozzles

Low Water Us

Low Water Use

Best for bolcony

Best for Balcony & Garden

Technical specifications

Sl. No. Item Description Qty Purpose

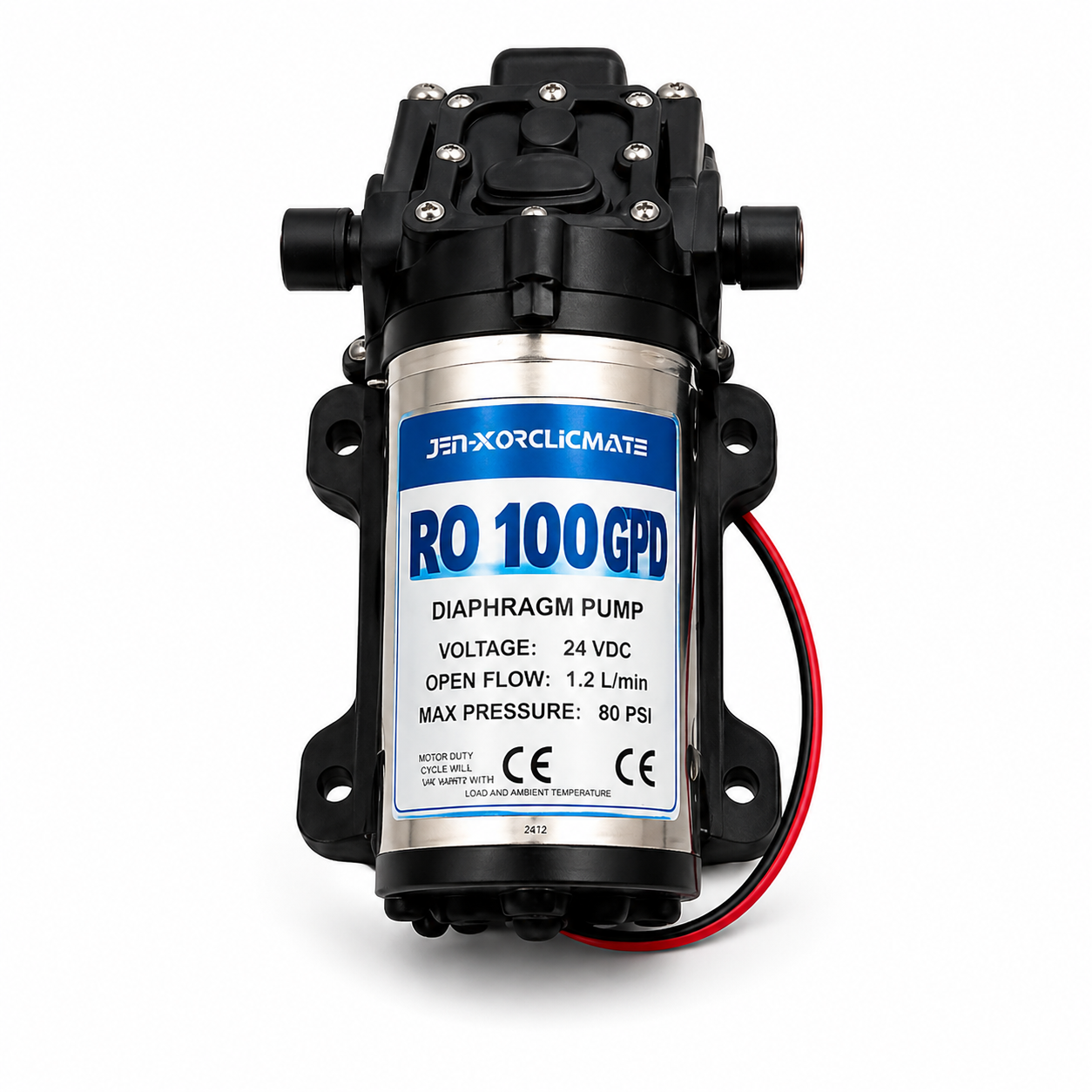

1 RO 100 GPD Pump 1 No Generates water pressure for fogging nozzles

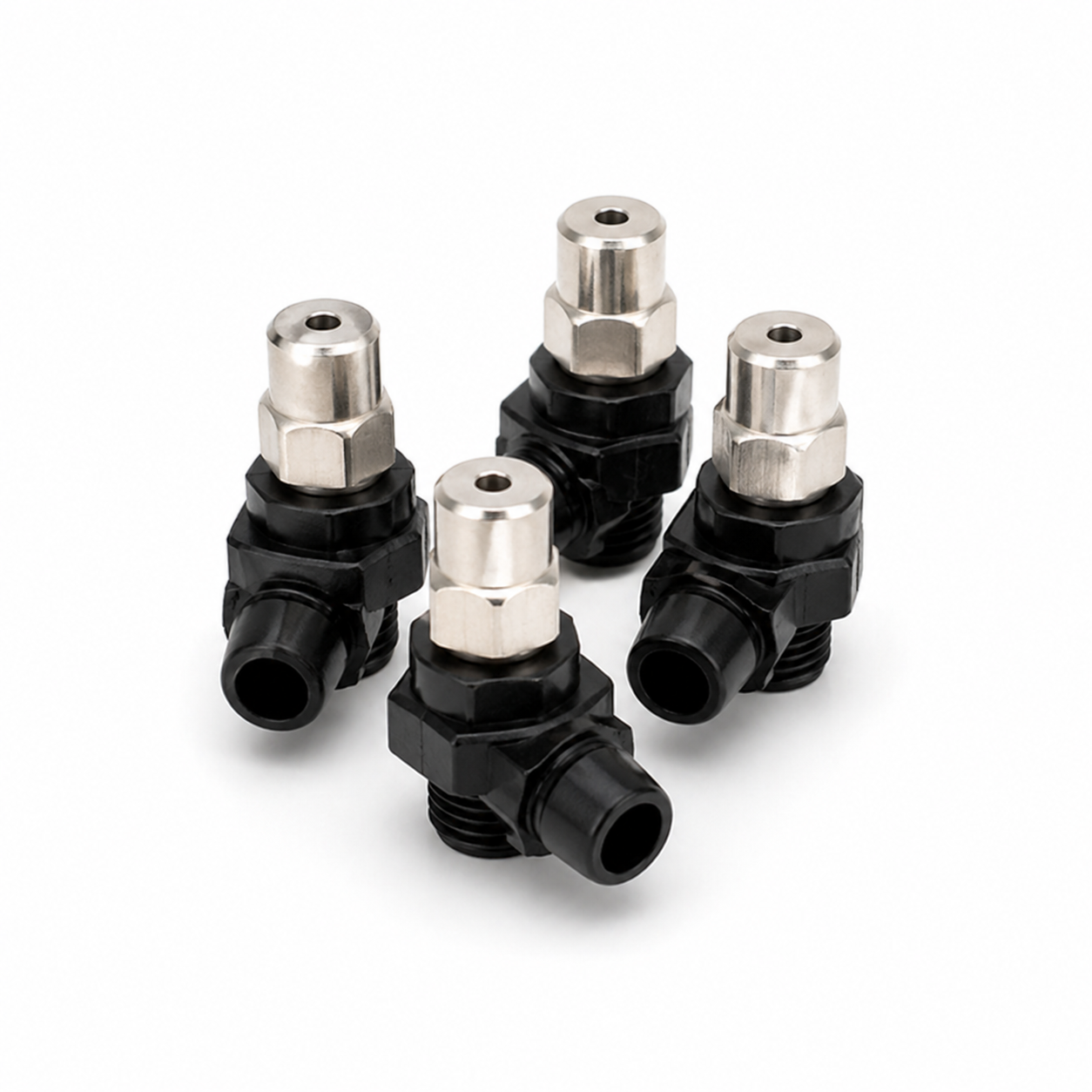

2 6 mm Push Fit Fog Nozzles 10 Nos Produces fine mist/fog spray

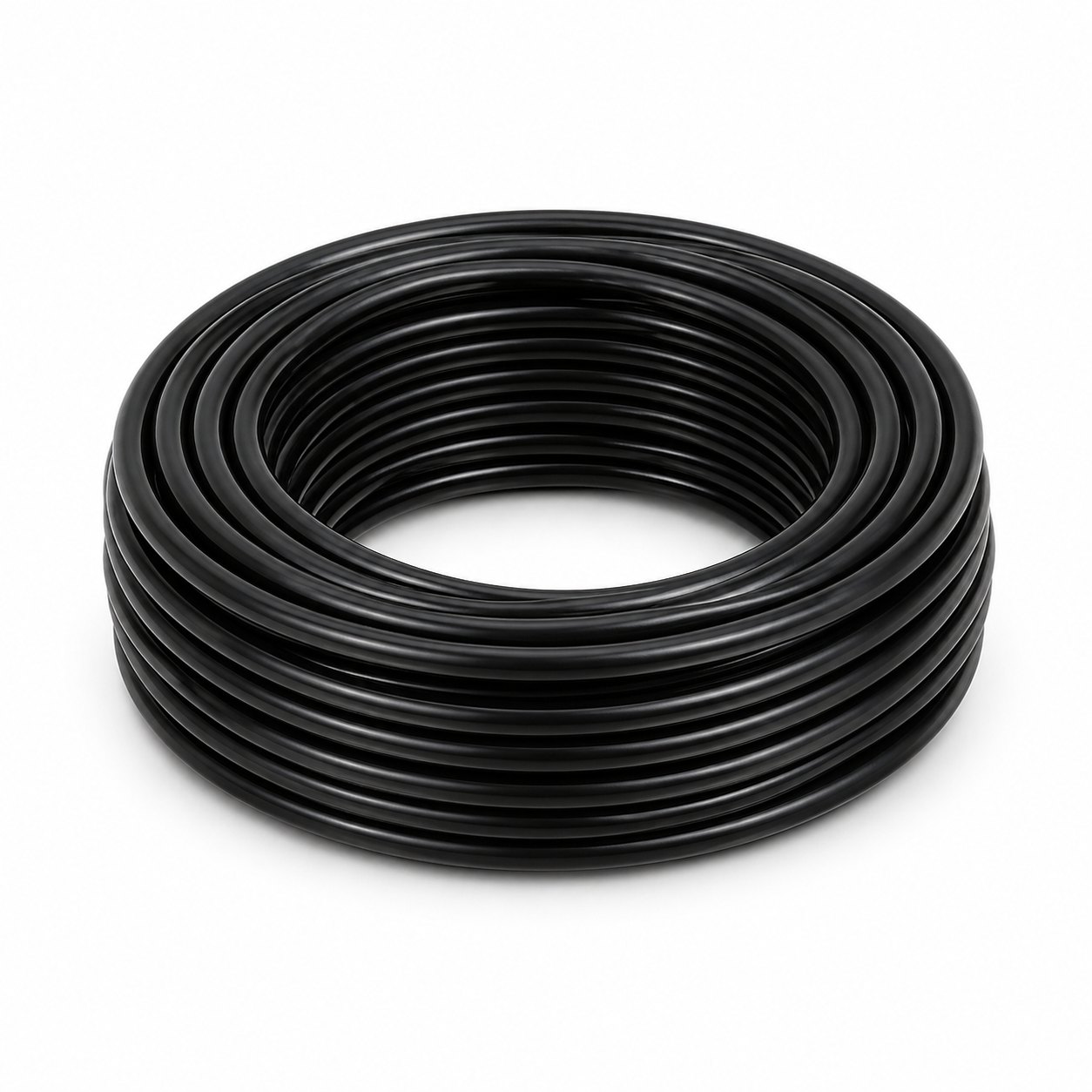

3 6 mm PU/PE Tube As required Main misting line connection
4 6 mm Tee Connectors As required Branch connection between nozzles
5 6 mm Elbow Connectors As required Corner pipe routing
6 6 mm End Cap / Stopper 1 No Closes the end of mist line
7 Inline Filter 1 No Helps reduce nozzle clogging

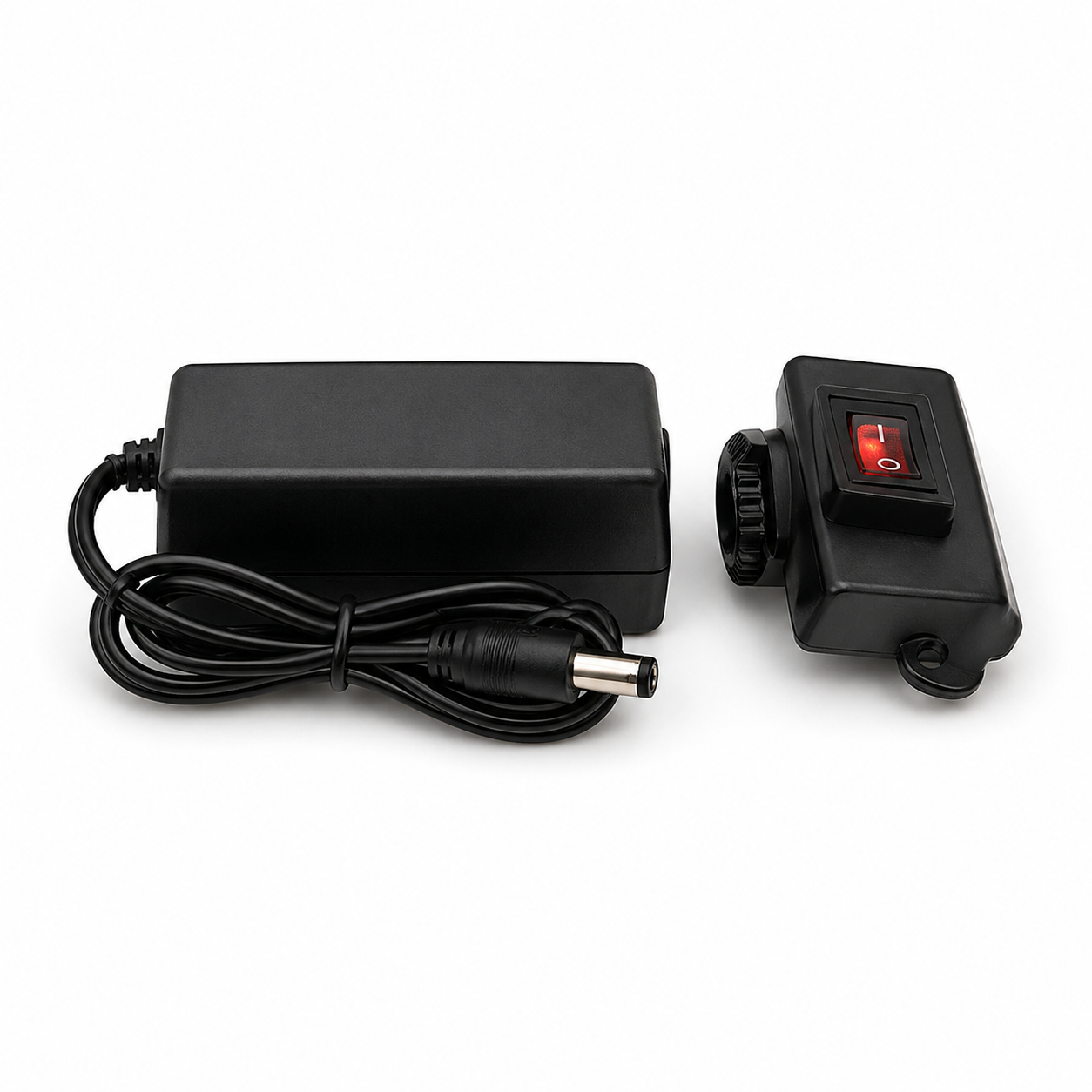

8 Power Adapter / SMPS 1 No Power supply for RO pump
9 Mounting Clips / Cable Ties As required Pipe fixing support
10 On/Off Switch 1 No Manual system operation
11 Water Inlet Tube 1 Set Connects water source to pump
12 Pump Outlet Tube 1 Set Connects pump outlet to mist line

Appications

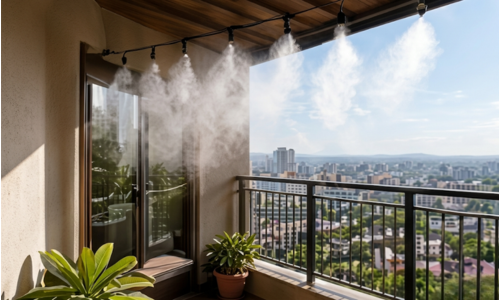

Balcony Cooling Application

Balcony Cooling

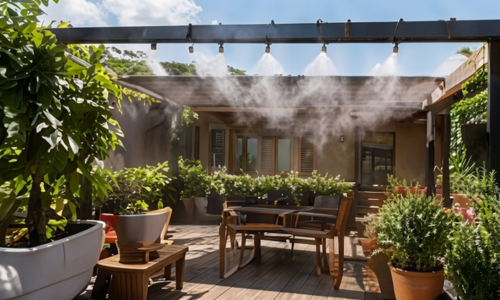

Terrace Garden Misting

Terrace Garden Misting

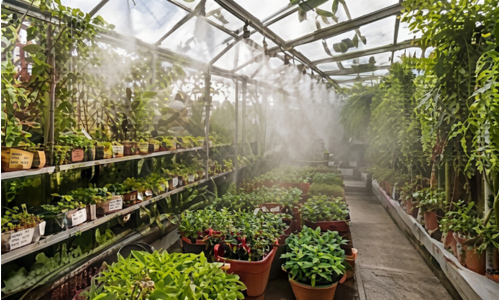

Nursery and Greenhouse Use

Nursery and Greenhouse

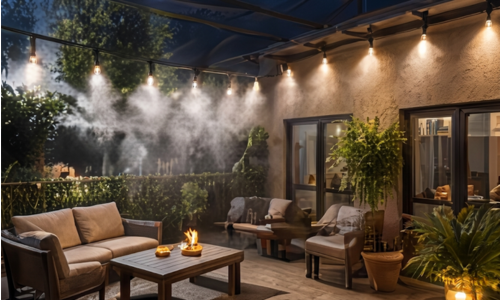

Outdoor Seating Cooling

Outdoor Seating Cooling

Installation Guide

Select Installation Location

Select Installation Location

Identify and choose the appropriate area for effective misting coverage.

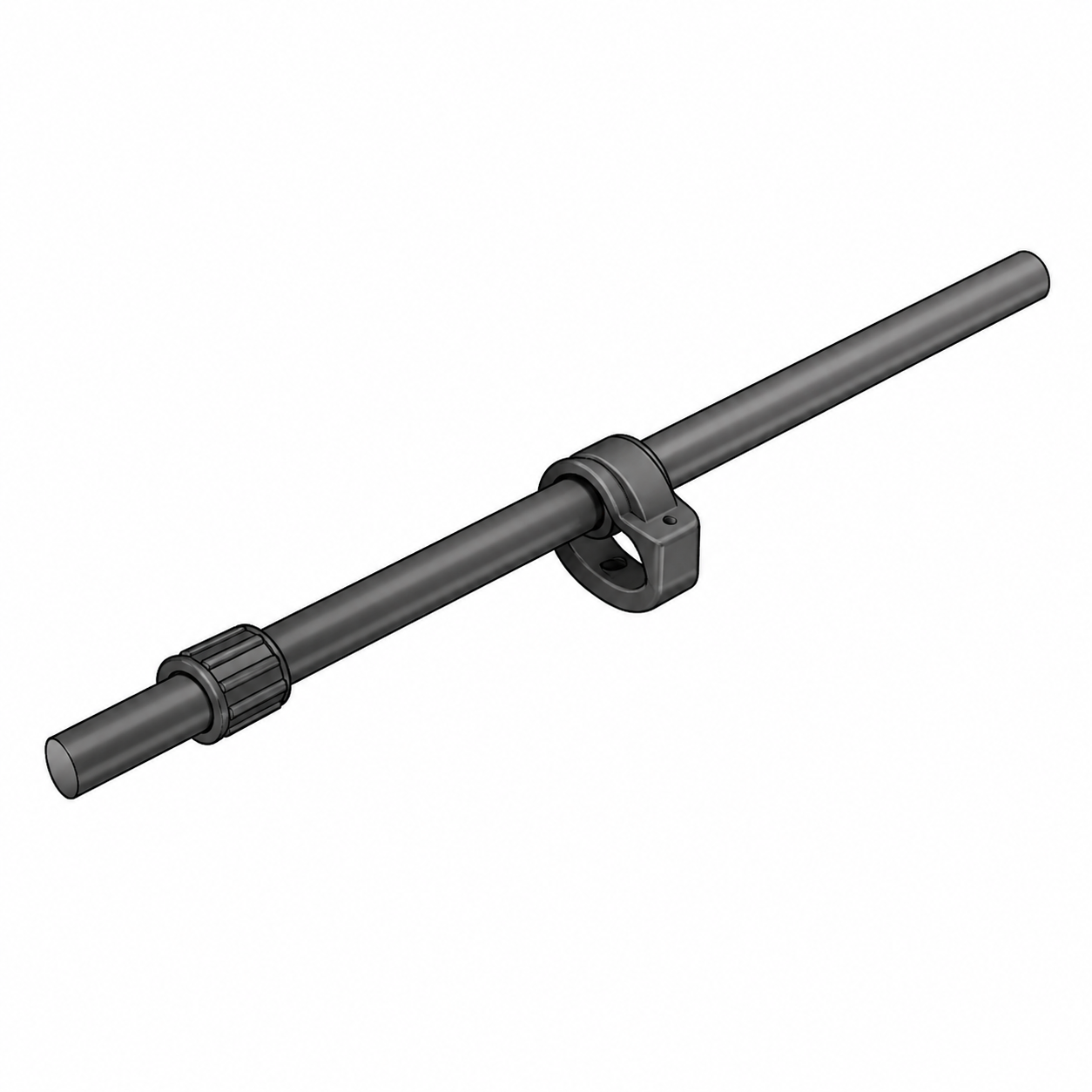

Fix the 6 mm Pipe Line

Fix the 6 mm Pipe Line

Secure the main pipeline using suitable clips to ensure stability and alignment.

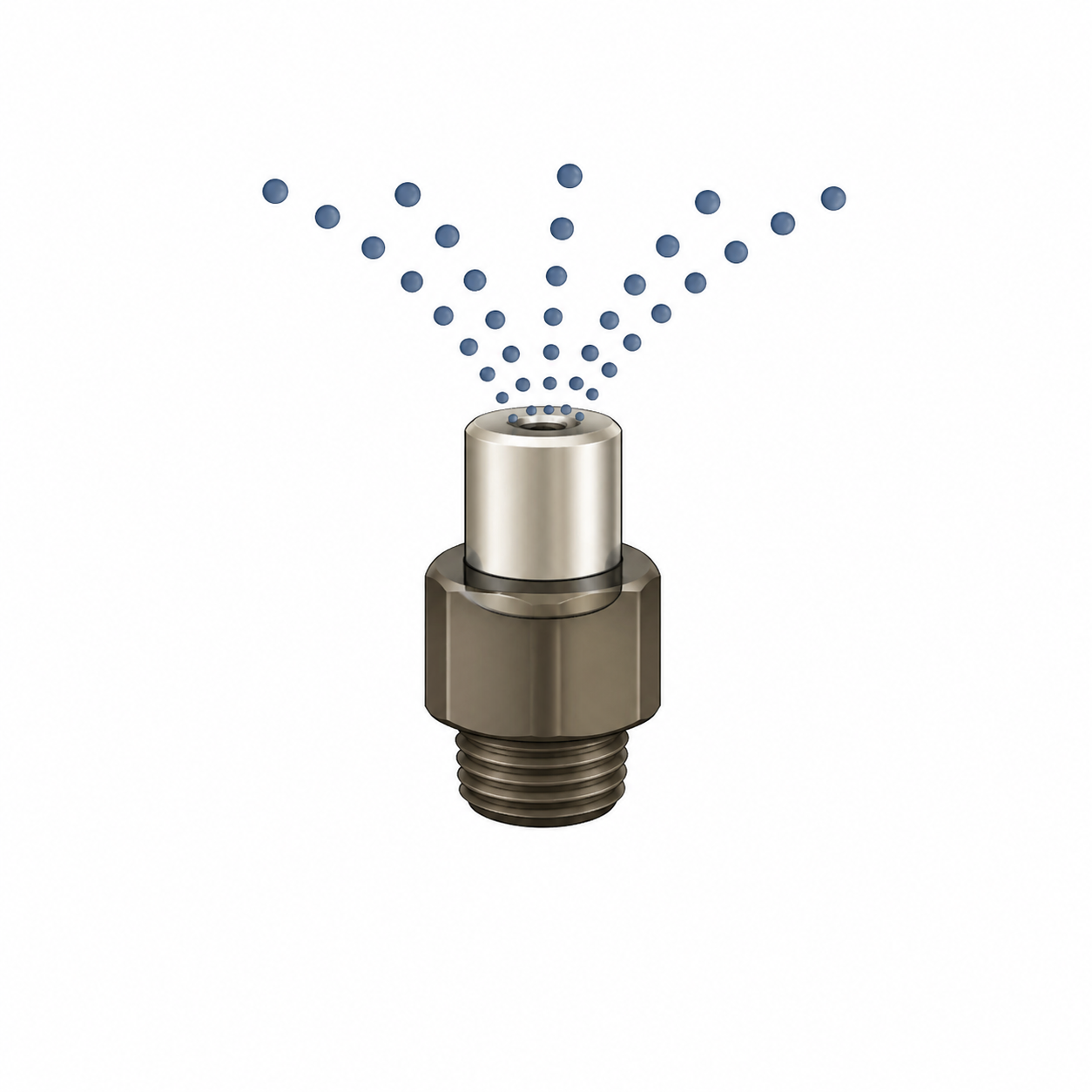

Connect Push Fit Nozzles

Connect Push Fit Nozzles

Insert and fix the nozzles properly into the pipeline for uniform spray distribution.

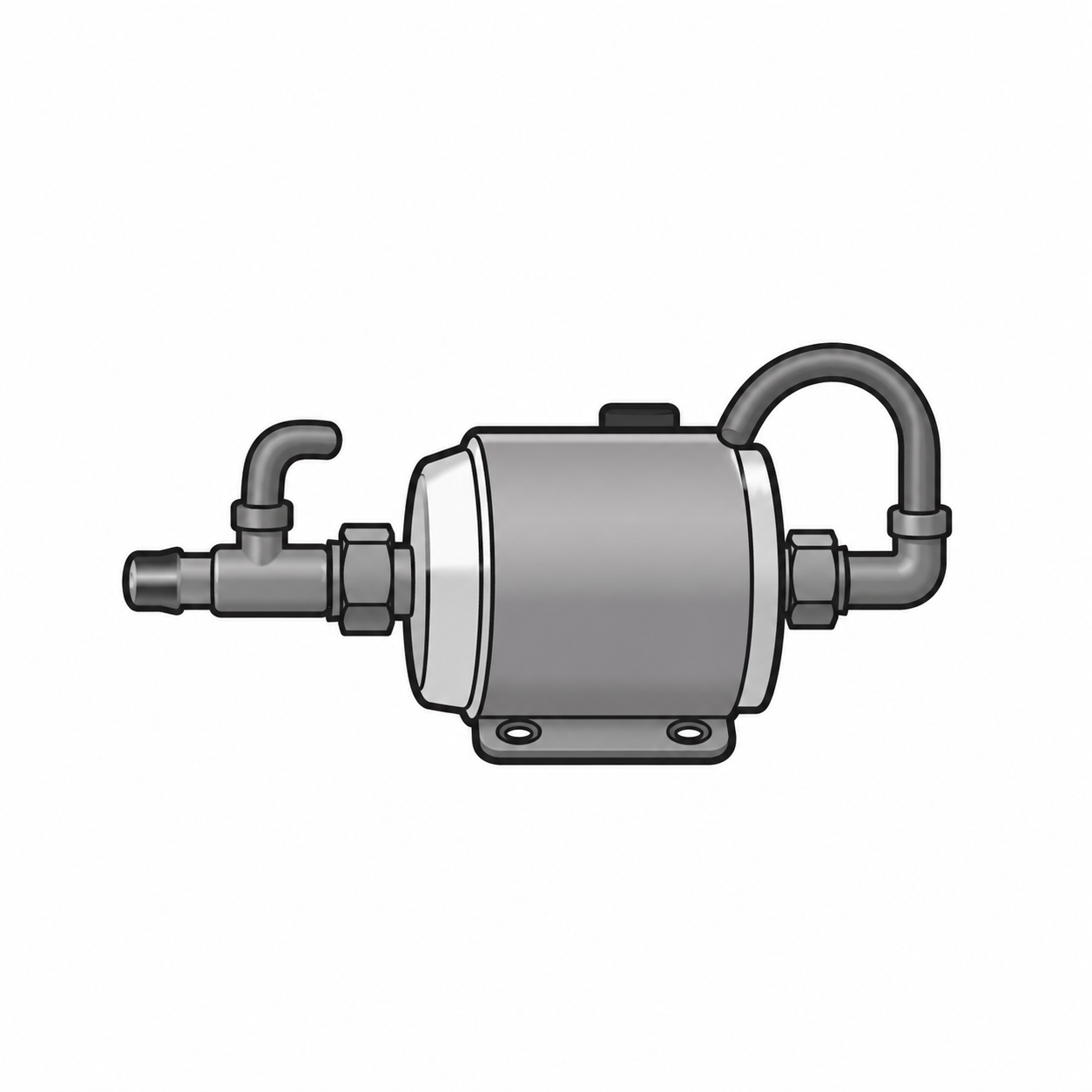

Connect Pump Outlet

Connect Pump Outlet

Attach the pipeline to the pump outlet to complete the system setup.

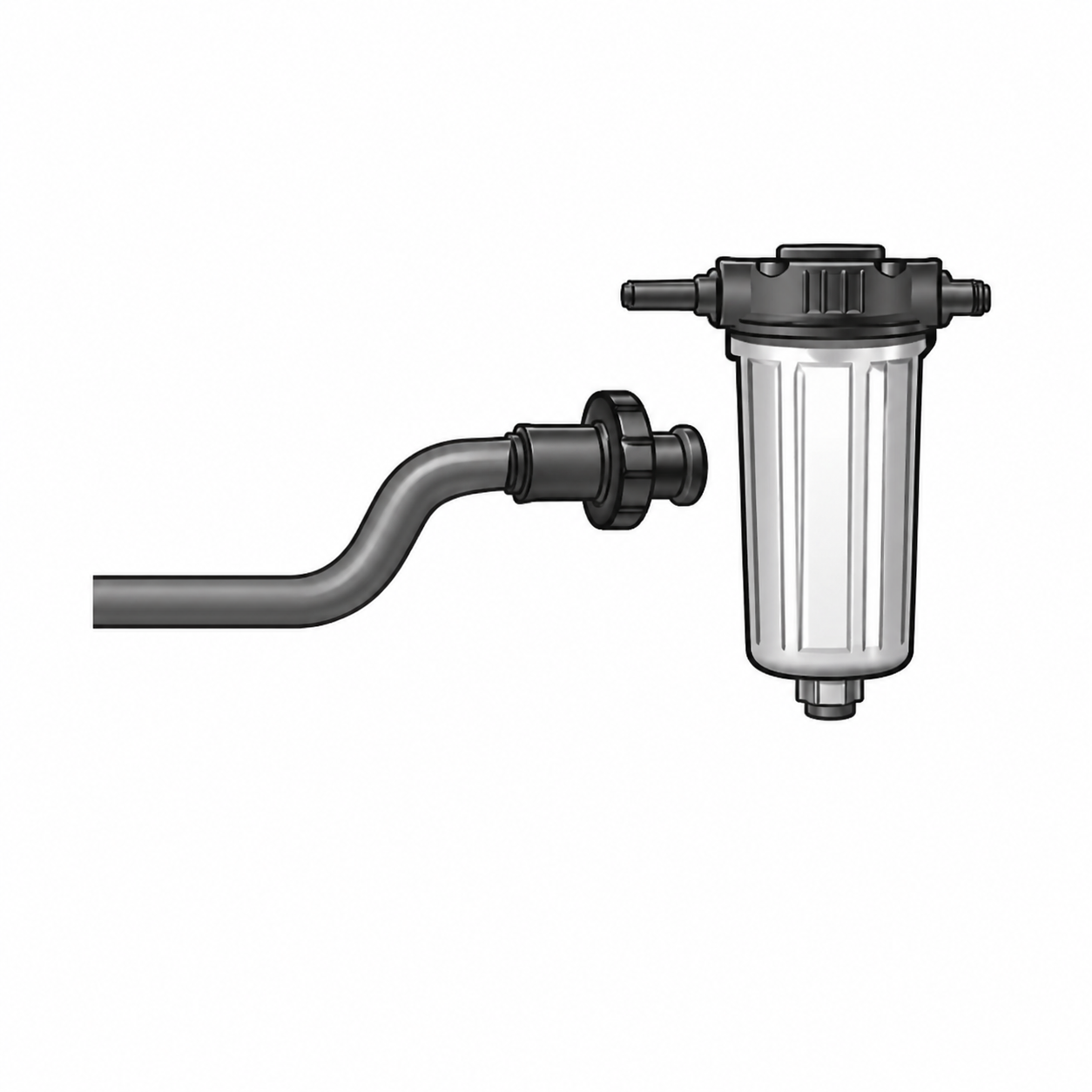

Connect Water Inlet

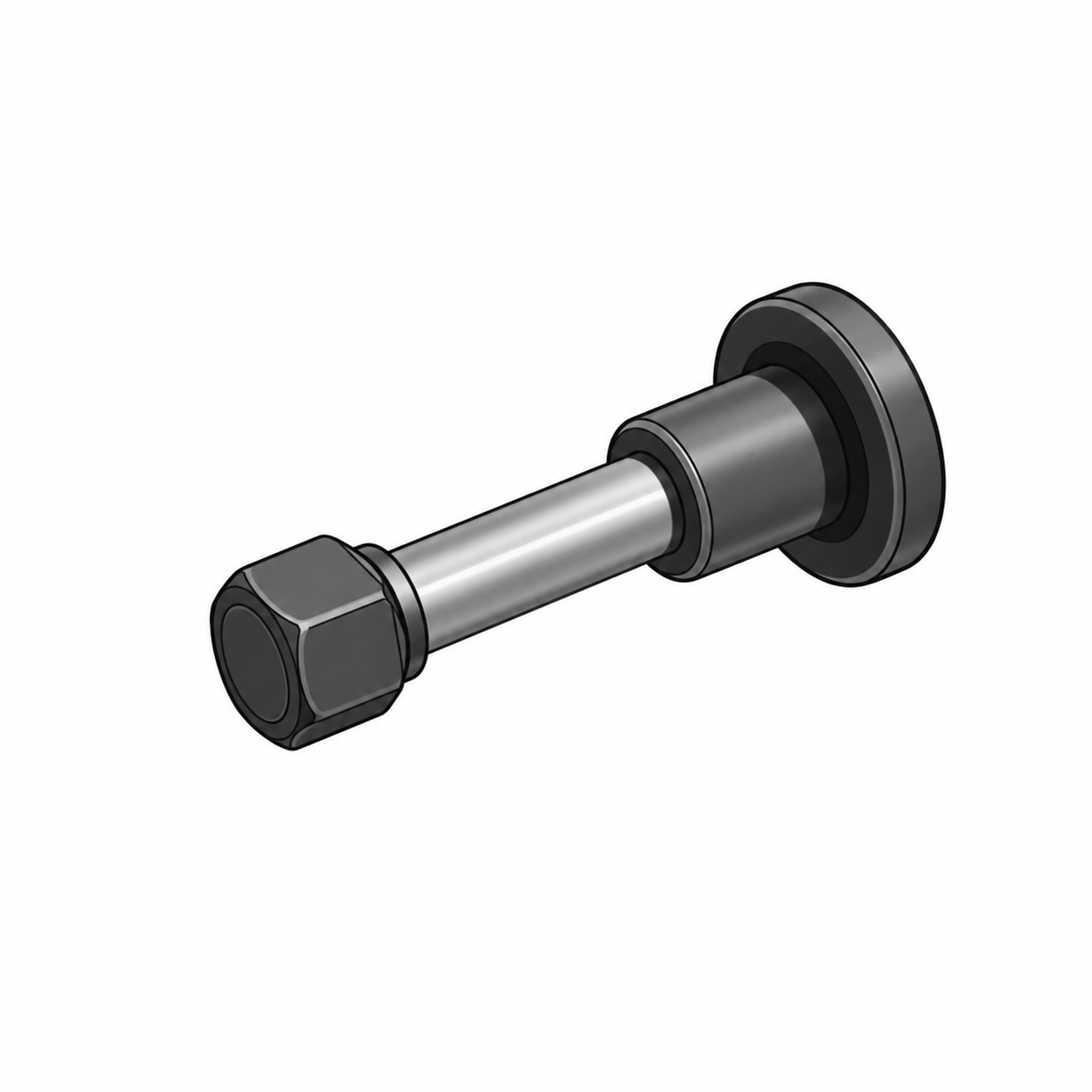

Close the End Line

Use end cap to seal the open pipe end.

Close the End Line

Close the End Line

Use end cap to seal the open pipe end.

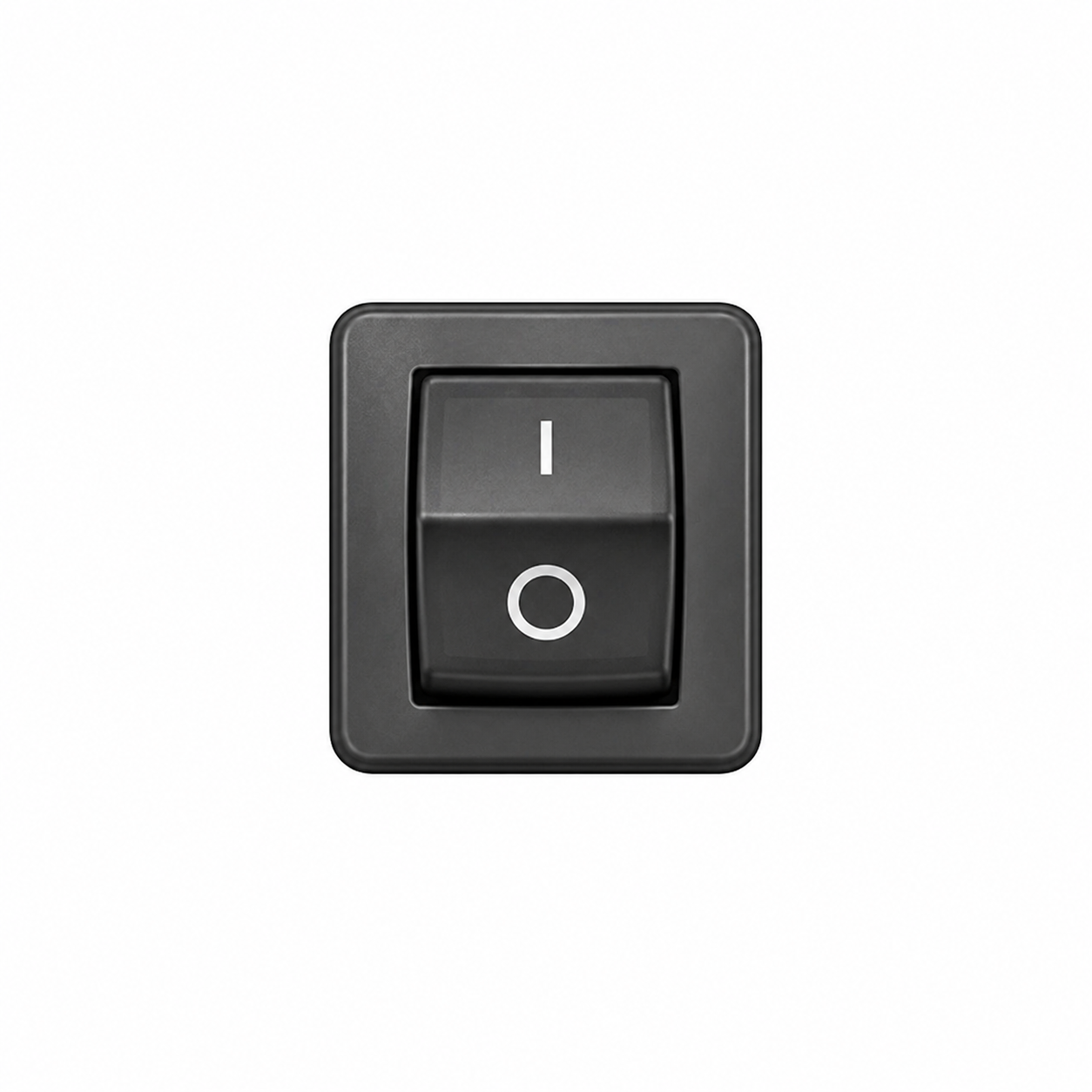

Check Power Supply

Check Power Supply

Connect adapter and switch on the system.

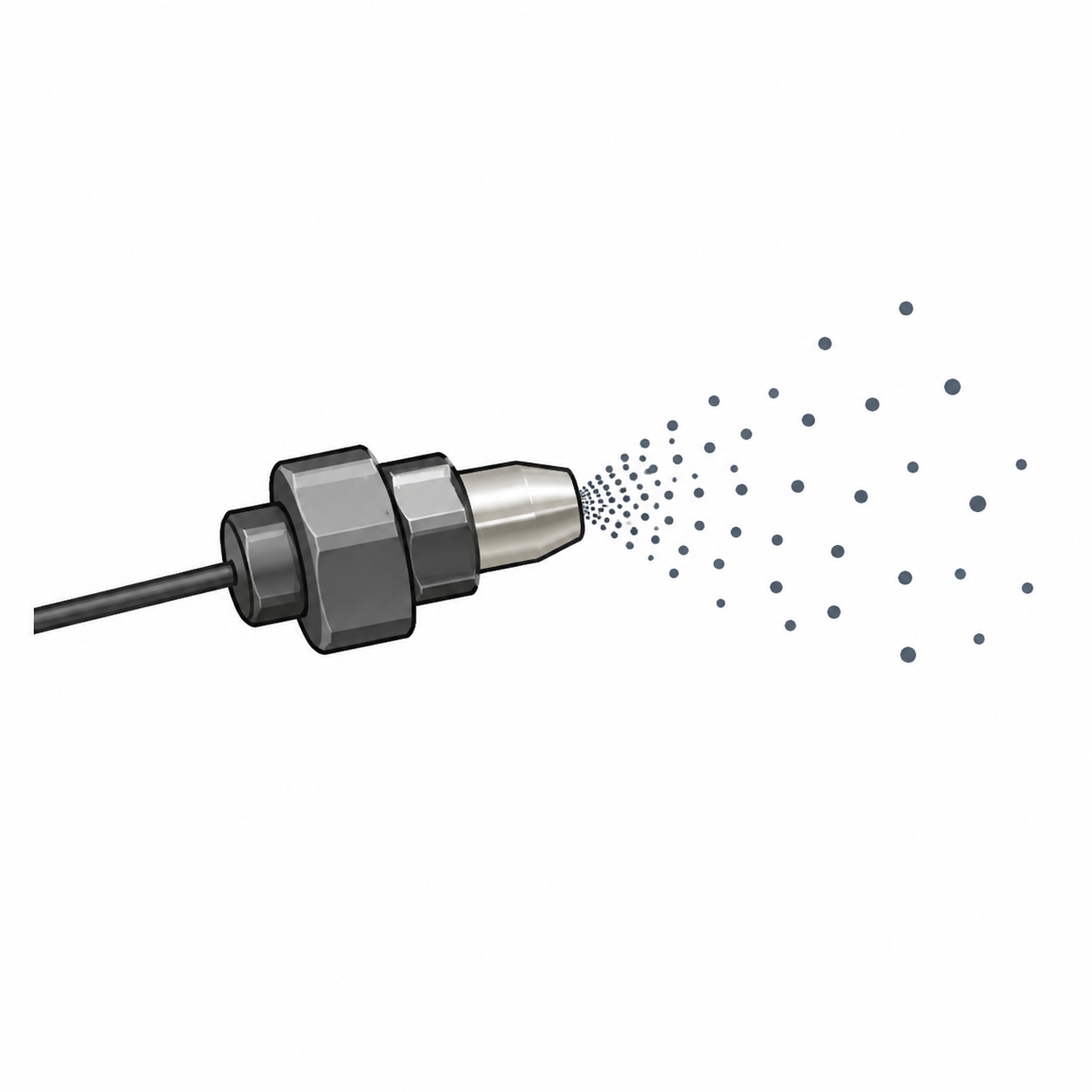

Test the System

Test the System

Check mist output and inspect for leaks.

How its work / Benefits

Fine Mist

Fine Mist Output

Produces ultra-fine mist for effective cooling and humidification.

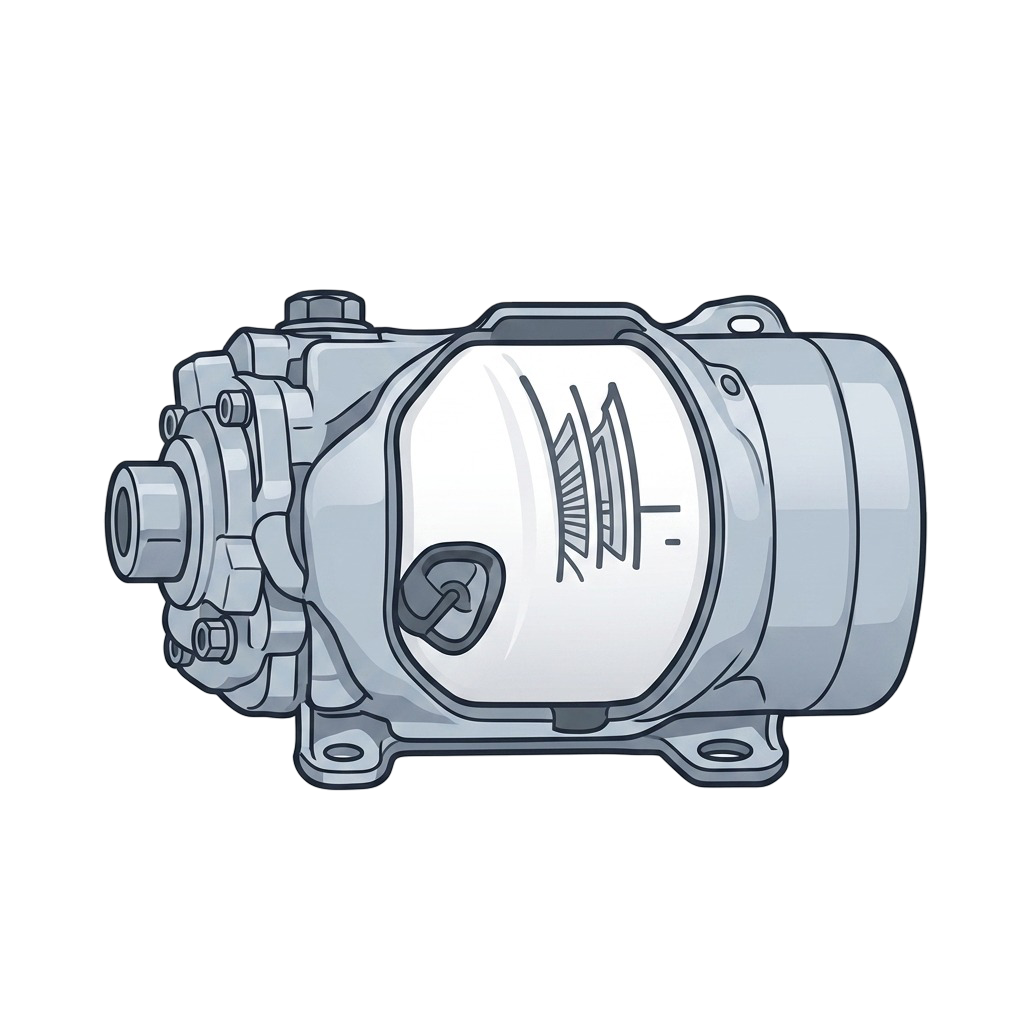

Compact Pump Design

Compact Pump Design

RO 100 GPD pump ensures reliable and consistent performance.

Water-Efficient Cooling

Low Maintenance

Durable components ensure long service life with minimal upkeep.

Suitable for Home & Garden

Suitable for Home & Garden

Ideal for small outdoor spaces, plants, and relaxation areas.

Low Maintenance

Water-Efficient Cooling

Provides cooling with minimal water consumption.

Frequently Asked Questions

A low pressure fogger kit is used for basic mist cooling, plant misting, balcony cooling, terrace garden moisture control, and small nursery applications.

This kit includes 10 numbers of 6 mm push fit fog nozzles.

Yes. This kit is suitable for balcony cooling, especially when installed along the ceiling edge or railing area.

This kit uses an RO 100 GPD pump to supply water pressure to the fog nozzles.

No. This is a low pressure fogger kit. It is suitable for basic misting applications, not heavy-duty industrial fogging.

Borewell water can be used only if it is properly filtered. Hard water may block the nozzles faster.

Yes. Clean filtered water is recommended to reduce nozzle clogging and improve misting performance.

Yes. The fog kit is basic installer friendly. However, electrical connections should be handled safely.

The pump capacity should be checked before increasing the number of nozzles. Adding too many nozzles may reduce mist quality.

Install the pump in a dry, shaded, and protected location near the water source.
