Spray nozzles are important components used to control how liquid is sprayed, distributed, atomized, cleaned, cooled, or applied on a surface.
Although a spray nozzle may look like a small fitting, its design directly affects the spray pattern, flow rate, spray angle, droplet size, spray impact, and coverage area.
Different industrial applications require different types of spray nozzles. For example, a surface cleaning system may need a flat fan spray nozzle, while a dust suppression system may need a full cone nozzle, mist nozzle, fog nozzle, or air atomizing nozzle.
For tank and vessel cleaning, a static spray ball, rotating tank cleaning nozzle, or 360-degree spray nozzle may be required.
As a spray nozzle manufacturer, we supply industrial spray nozzles for washing, cleaning, dust suppression, cooling, misting, humidification, chemical spraying, tank cleaning, gas cooling, gas scrubbing, and process applications.
This guide explains the common types of spray nozzles, their uses, benefits, and how to choose the right spray nozzle for your industrial application.
Why Selecting the Right Spray Nozzle Type Is Important
Every spraying application has a different purpose. Some applications need strong impact, some need fine droplets, and some need uniform liquid distribution over a large area.
Choosing the correct spray nozzle helps to:
- Improve spray coverage
- Reduce water and chemical wastage
- Improve washing and cleaning efficiency
- Control dust more effectively
- Improve cooling and humidification
- Reduce nozzle clogging problems
- Maintain process consistency
- Reduce maintenance downtime
- Increase nozzle service life
A wrong nozzle may still spray liquid, but it may not deliver the required result.
The right nozzle should be selected based on application, spray pattern, flow rate, pressure, droplet size, liquid type, material, water quality, and installation condition.
Benefits of Different Types of Spray Nozzles
Different types of spray nozzles are designed for different industrial applications. Choosing the correct nozzle type provides many performance and operational benefits.
Key benefits include:
- Better spray coverage: The right nozzle helps distribute liquid evenly over the target area.
- Improved cleaning performance: Flat fan, solid stream, and high-pressure nozzles provide better impact for washing and cleaning.
- Effective dust suppression: Full cone, mist, fog, and air atomizing nozzles help control airborne and surface dust.
- Better cooling and humidification: Mist, fog, hollow cone, and full cone nozzles help achieve proper cooling and moisture control.
- Reduced water and chemical wastage: Correct nozzle selection prevents over-spraying and unnecessary liquid consumption.
- Lower clogging problems: Spiral nozzles, proper orifice selection, and correct filtration help reduce blockage issues.
- Improved process consistency: Proper spray pattern, flow rate, and droplet size help maintain stable process performance.
- Longer nozzle life: Correct material selection such as SS304, SS316, ceramic, or special alloys improves durability.
- Reduced maintenance downtime: A suitable nozzle reduces frequent cleaning, replacement, and system stoppage.
- Better safety and working conditions: Proper dust control, cooling, and washing improve the industrial work environment.

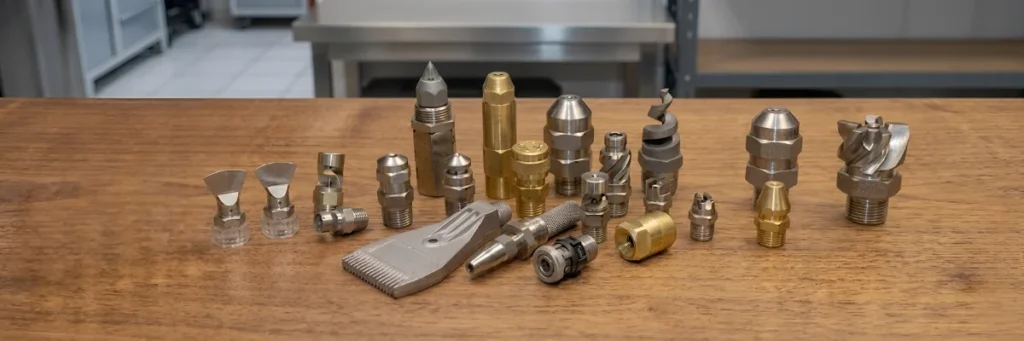

Common Types of Spray Nozzles
As a spray nozzle manufacturer, we help customers choose the correct nozzle type based on flow rate, pressure, spray angle, droplet size, liquid quality, and application requirement.
| Spray Nozzle Type | Spray Pattern | Best Used For | Key Benefits |
|---|---|---|---|
| Flat Fan Spray Nozzle | Flat fan-shaped spray | Surface washing, conveyor cleaning, rinsing, coating, pretreatment, parts washing | Provides controlled spray coverage, good washing impact, and uniform surface cleaning |
| Full Cone Spray Nozzle | Full round cone spray | Dust suppression, cooling, gas scrubbing, chemical spraying, material wetting | Offers complete circular spray coverage and even liquid distribution |
| Hollow Cone Spray Nozzle | Ring-shaped cone spray | Gas cooling, humidification, gas scrubbing, chemical spraying, evaporative cooling | Produces fine droplets with good air-liquid contact for cooling and process applications |
| Mist Spray Nozzle | Fine mist spray | Humidification, outdoor cooling, textile humidity control, greenhouse misting | Creates fine droplets for cooling, humidity control, and low-water spraying |
| Fog Spray Nozzle | Ultra-fine fog spray | Dry fog dust suppression, odor control, cooling, fine misting systems | Helps control airborne dust with very fine droplets and reduced over-wetting |
| Solid Stream Nozzle | Straight jet spray | High-impact cleaning, jet washing, drain cleaning, long-distance spraying | Delivers strong impact force for targeted cleaning and hard deposit removal |
| Tank Cleaning Nozzle | 180°, 270°, or 360° cleaning spray | Tank cleaning, vessel cleaning, drum cleaning, CIP cleaning systems | Cleans internal tank surfaces and reduces manual cleaning time |
| Air Atomizing Nozzle | Fine atomized spray using air and liquid | Dry fog dust control, coating, lubrication, cooling, chemical spraying | Produces very fine atomization with controlled spray quality |
| Spiral Spray Nozzle | Full cone or hollow cone spray | Gas scrubbing, cooling, wastewater treatment, dust suppression, fire protection | Has large free passage, lower clogging risk, and good performance in dirty water applications |
| High Pressure Spray Nozzle | High-impact spray or fine mist | Industrial washing, descaling, high-pressure cleaning, mist cooling | Improves cleaning impact, atomization, and performance in demanding applications |
| Adjustable Spray Nozzle | Adjustable jet to spray pattern | Manual washing, utility cleaning, testing, variable spray needs | Allows flexible spray control for general-purpose applications |
Application-Wise Spray Nozzle Selection Table
Different industrial applications require different nozzle designs. The table below gives a simple selection guide for choosing the right spray nozzle.
| Industrial Application | Recommended Spray Nozzle Types | Why These Nozzles Are Suitable |
|---|---|---|
| Surface Washing & Cleaning | Flat Fan Nozzle, High Pressure Nozzle, Solid Stream Nozzle | These nozzles provide better impact and controlled spray coverage for cleaning surfaces, belts, parts, and equipment |
| Dust Suppression Systems | Fog Nozzle, Mist Nozzle, Full Cone Nozzle, Hollow Cone Nozzle, Air Atomizing Nozzle | These nozzles create suitable droplets to capture airborne dust or wet dust-prone areas |
| Cooling Applications | Full Cone Nozzle, Hollow Cone Nozzle, Mist Nozzle, Fog Nozzle | These nozzles distribute water properly and help reduce temperature through spraying or evaporation |
| Humidification Systems | Mist Nozzle, Fog Nozzle, Hollow Cone Nozzle | These nozzles produce fine droplets for controlled humidity in textile, greenhouse, and industrial areas |
| Chemical Spraying | Flat Fan Nozzle, Full Cone Nozzle, Hollow Cone Nozzle, Air Atomizing Nozzle | These nozzles provide controlled chemical distribution with suitable material selection |
| Tank Cleaning | Static Spray Ball, Rotating Tank Cleaning Nozzle, 360° Tank Cleaning Nozzle | These nozzles clean internal tank walls, roof, bottom, and corners with better coverage |
| Gas Scrubbing & Gas Cooling | Full Cone Nozzle, Hollow Cone Nozzle, Spiral Nozzle | These nozzles improve gas-liquid contact and support cooling, scrubbing, and pollution control applications |
| High-Impact Cleaning | Solid Stream Nozzle, High Pressure Nozzle | These nozzles provide strong jet force for removing hard dirt, deposits, and process residues |
| Food & Beverage Washing | Flat Fan Nozzle, Tank Cleaning Nozzle, SS304/SS316 Spray Nozzle | These nozzles support hygienic washing, rinsing, and cleaning of tanks, containers, and processing equipment |
| Coal Handling & Mining Dust Control | Fog Nozzle, Full Cone Nozzle, Air Atomizing Nozzle, Spiral Nozzle | These nozzles help control dust at crushers, conveyors, transfer points, loading areas, and stockyards |
How to Choose the Correct Spray Nozzle Type
Before selecting a spray nozzle, check the actual application requirement instead of choosing only by thread size or price. The correct nozzle should match the required spray pattern, flow rate, pressure, spray angle, droplet size, liquid type, water quality, nozzle material, and installation distance.
For example, a flat fan spray nozzle is suitable for surface washing because it gives controlled line coverage. A full cone spray nozzle is useful for dust suppression and cooling because it gives complete round spray coverage. A fog nozzle or mist nozzle is better when fine droplets are required for dust control, misting, or humidification.
FAQs
1. What are the different types of spray nozzles?
The common types of spray nozzles include flat fan nozzles, full cone nozzles, hollow cone nozzles, mist nozzles, fog nozzles, solid stream nozzles, tank cleaning nozzles, air atomizing nozzles, spiral nozzles, and high pressure nozzles.
2. Which spray nozzle is best for washing?
Flat fan spray nozzles are commonly used for washing because they provide controlled spray coverage and good surface impact.
3. Which spray nozzle is used for dust suppression?
Mist nozzles, fog nozzles, full cone nozzles, hollow cone nozzles, spiral nozzles, and air atomizing nozzles are used for dust suppression depending on dust type and site condition.
4. What is a full cone spray nozzle used for?
A full cone spray nozzle is used for dust suppression, cooling, liquid distribution, gas scrubbing, chemical spraying, fire protection, and material wetting.
5. What is a flat fan spray nozzle used for?
A flat fan spray nozzle is used for surface washing, conveyor cleaning, rinsing, coating, pretreatment, vehicle washing, and controlled spray applications.
6. What is a hollow cone nozzle used for?
A hollow cone nozzle is used for cooling, humidification, gas scrubbing, gas cooling, chemical spraying, and fine spray applications.
7. What type of nozzle is used for tank cleaning?
Static spray balls, rotating tank cleaning nozzles, 360-degree tank cleaning nozzles, and high-impact tank washers are used for tank cleaning.
8. Which nozzle gives fine mist?
Mist nozzles, fog nozzles, and air atomizing nozzles are commonly used to produce fine mist or fine droplets.
9. Which nozzle is better for chemical spraying?
Flat fan, full cone, hollow cone, and atomizing nozzles can be used for chemical spraying. The correct material, such as SS316 or plastic, should be selected based on chemical compatibility.
10. Do you manufacture different types of spray nozzles?
Yes, we manufacture and supply different types of industrial spray nozzles for washing, cleaning, dust suppression, cooling, misting, humidification, chemical spraying, tank cleaning, gas cooling, and process applications.
